Key Features
Quick Specifications
Power Range
625W 630W 635W 640W 645W 650W
Efficiency
Up to 24.1%
Product Details

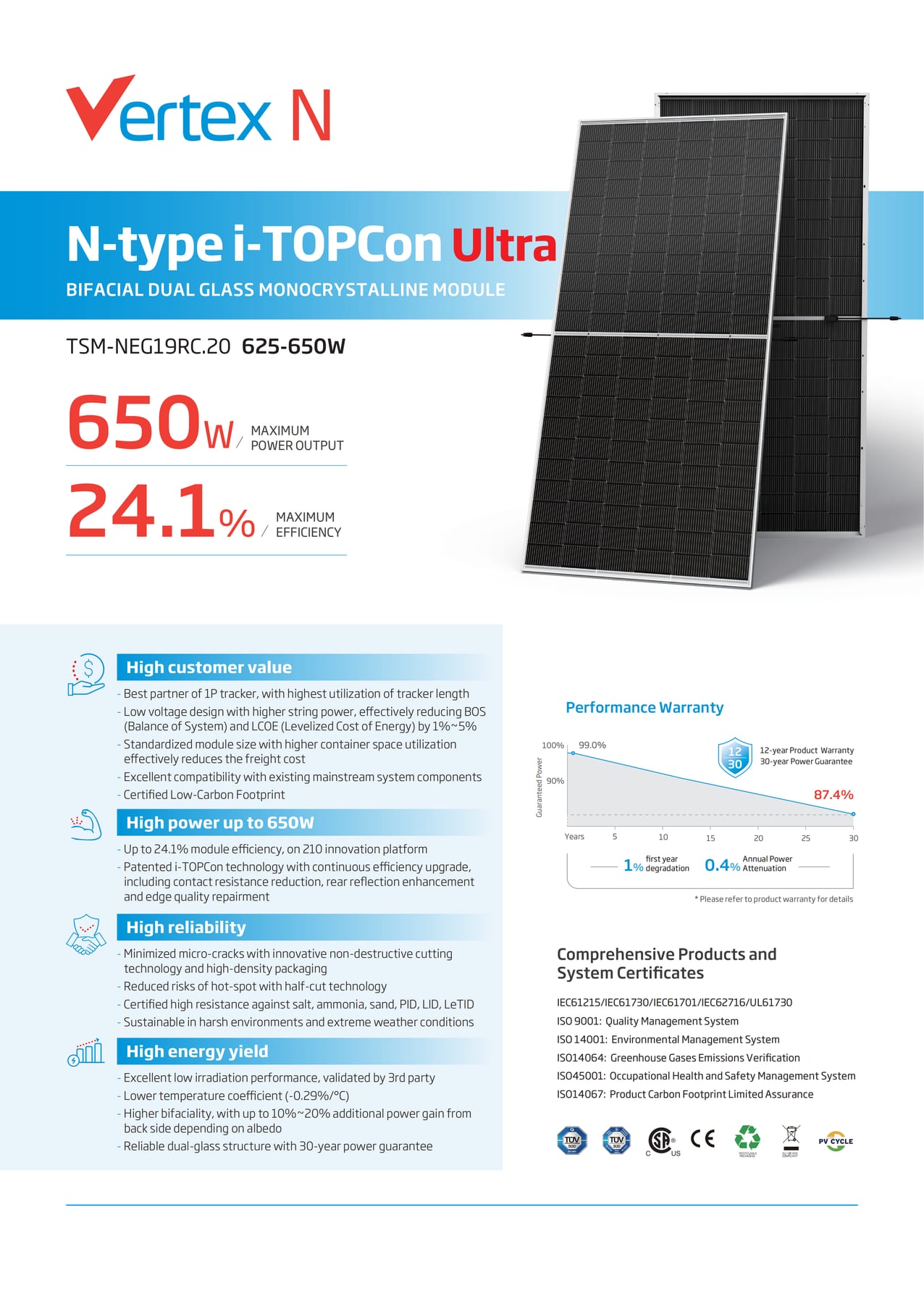

The Trina Solar Vertex N TSM-NEG19RC.20 is an N-type i-TOPCon Ultra bifacial dual-glass module delivering 625W to 650W with module efficiency up to 24.1%. Built on the 210 innovation platform with 132 half-cut cells, it uses a low-voltage design that increases string power and cuts BOS and LCOE by 1% to 5%. The standardized 2382×1134×30 mm size fits 720 modules in a 40-foot container, lowering freight cost per watt. With 80±5% bifaciality, a -0.29%/°C temperature coefficient, 1% first-year degradation and 0.4% annual degradation, it is a strong fit for utility-scale plants and 1P tracker projects.
Product Details

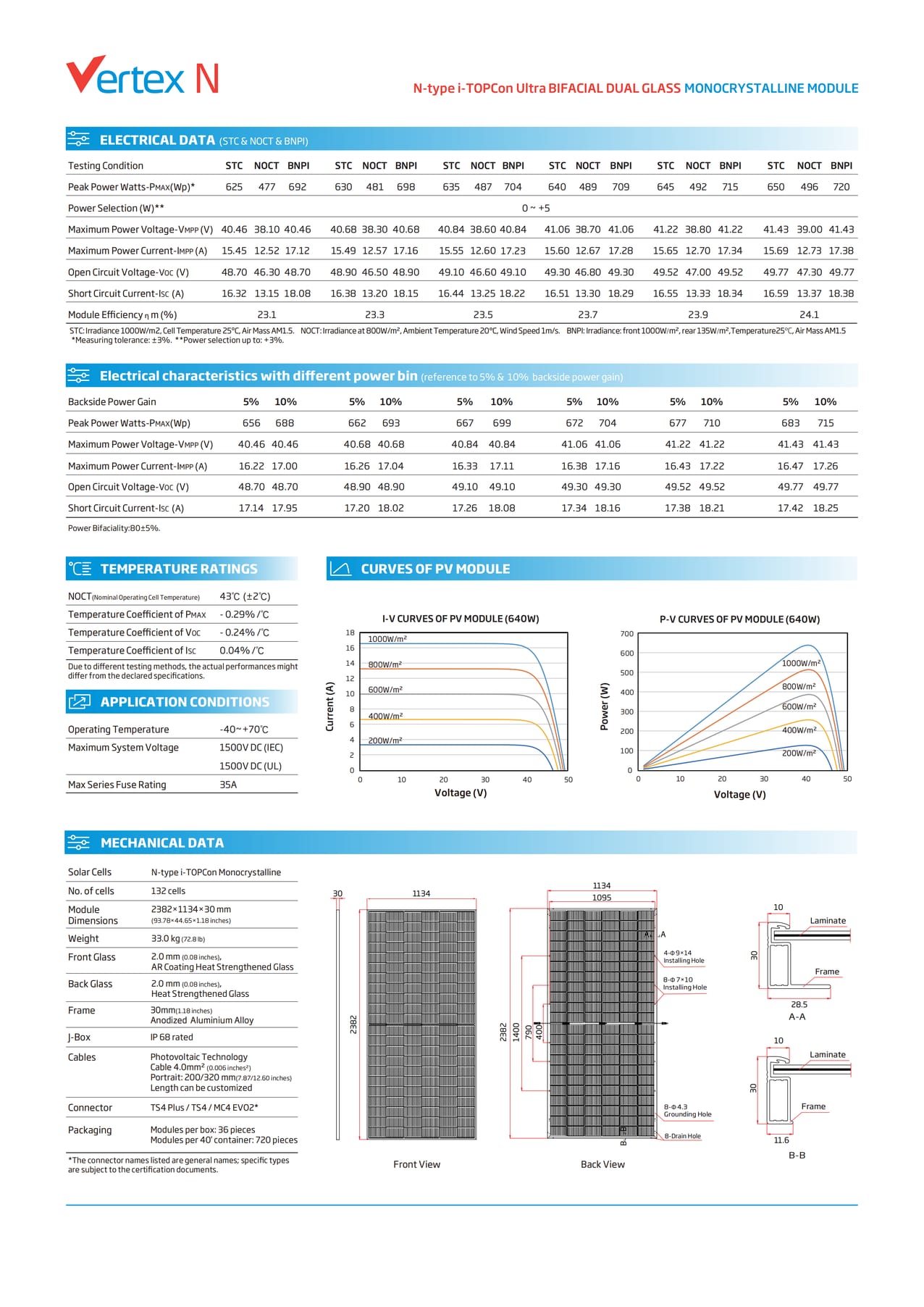

Technical Specifications
Technical Highlights
i-TOPCon Ultra
Patented i-TOPCon technology with lower contact resistance, enhanced rear reflection and edge repair reaches up to 24.1% module efficiency on the 210 platform
Lower BOS and LCOE
Low voltage design raises power per string, pairs well with 1P trackers and reduces balance of system cost and LCOE by 1% to 5%
Built for Harsh Sites
Dual 2.0 mm heat strengthened glass, IP68 junction box and non-destructive cell cutting resist micro-cracks, hot spots, salt, sand and ammonia
